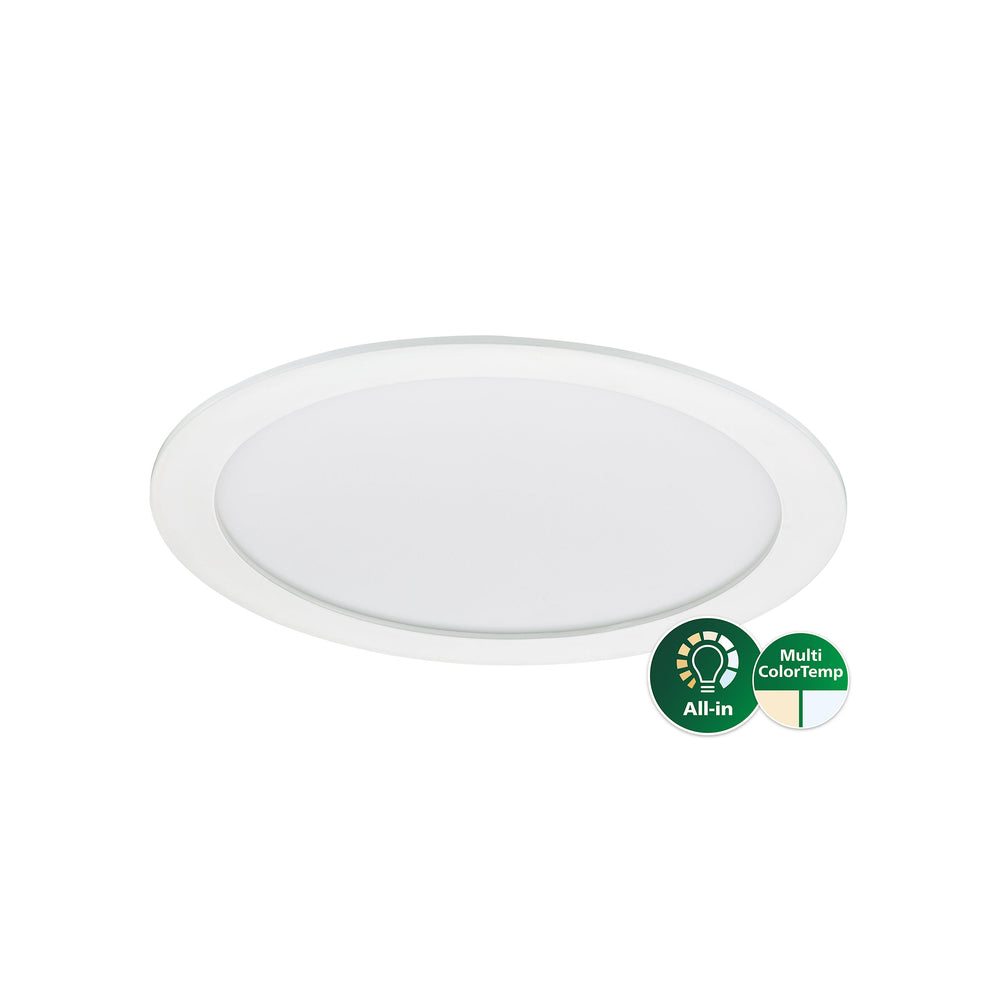

Discover the Philips CoreLine SlimDownlight DN145B

The Philips CoreLine SlimDownlight DN145B LED panel is a versatile and reliable choice when you need efficient lighting with modern design. You get a slim profile, multiple color temperature options, and long-lasting performance backed by Philips' trusted quality.

Main advantages

This downlight offers strong illumination with 2100 lumens, excellent efficiency at 100 lm/W, and hassle-free installation. You can choose between 3000K Warm White and 4000K Neutral White, making it adaptable for different settings. The compact, low-profile build ensures it fits seamlessly into ceilings.

Applications

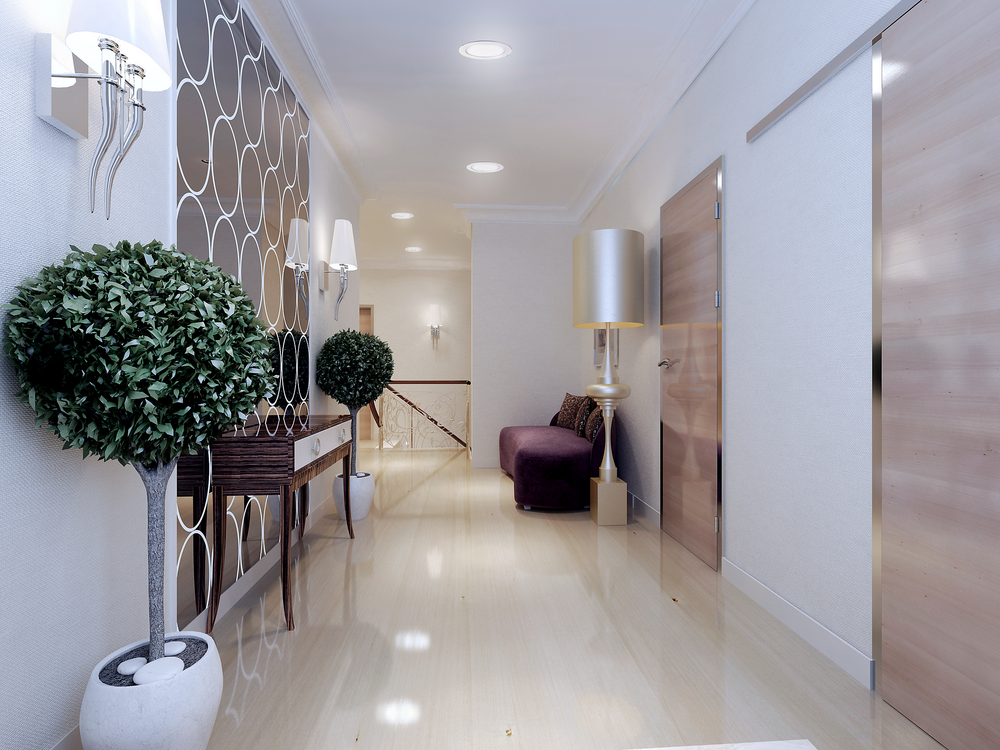

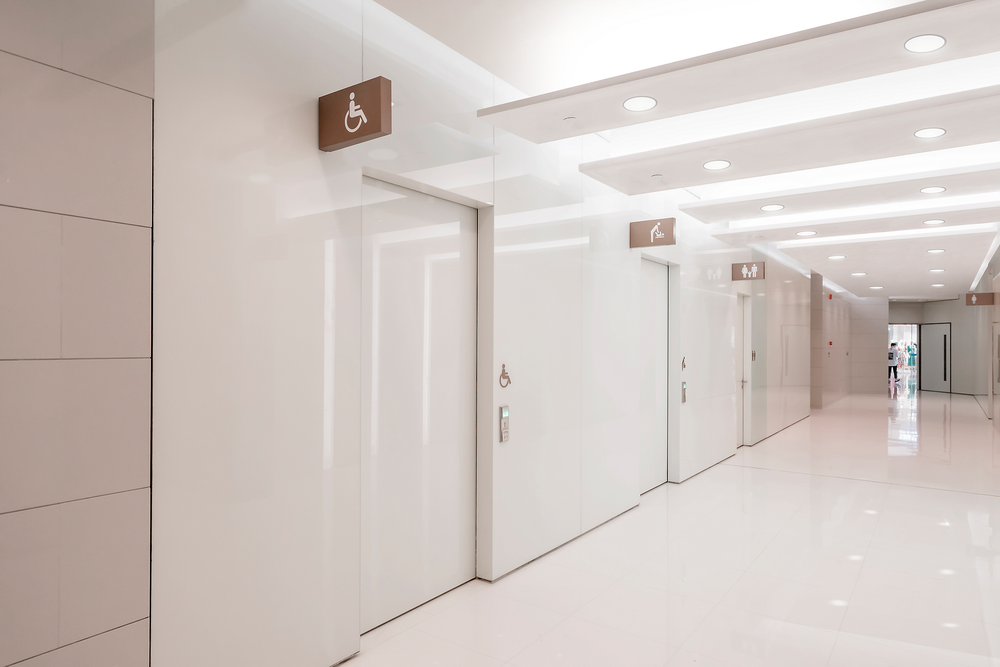

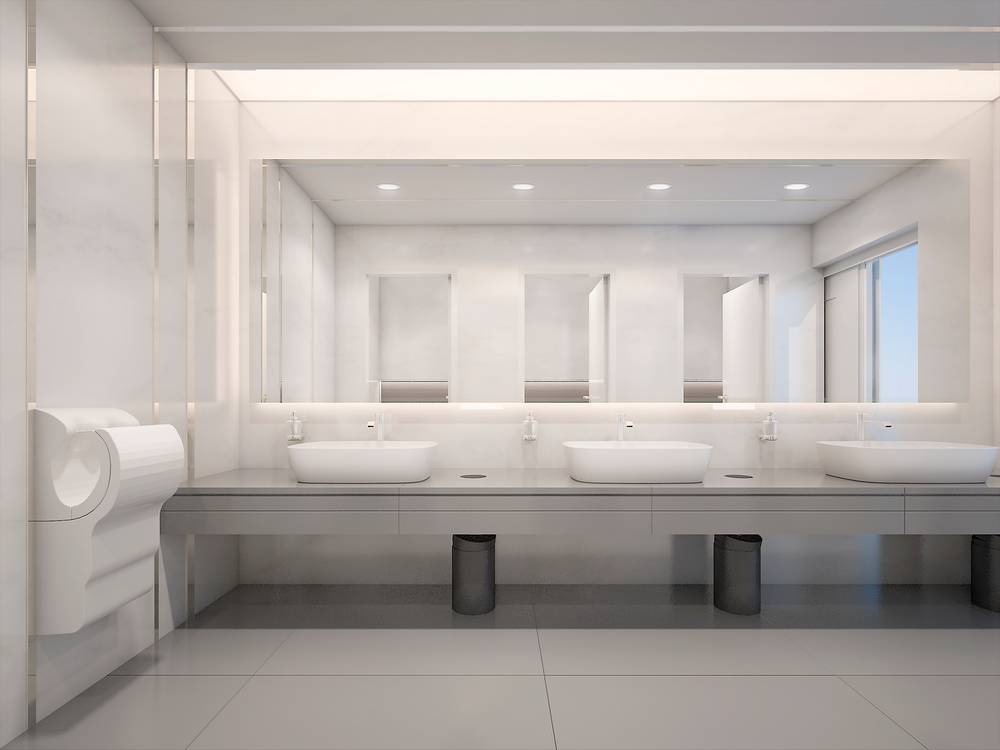

You can use this LED downlight in offices, corridors, schools, or retail spaces. It works perfectly for general lighting in areas where a wide 80° beam angle ensures uniform distribution. Its modern White finish blends well in any interior, and the IP20/44 rating gives you safe usage in standard environments.

Technical specifications

  • Philips CoreLine SlimDownlight DN145B LED 21W 3000K 4000K 2100 lumens White IP20/44 Ø215mm is designed for reliable everyday use with strong efficiency.
  • Luminous flux: 2100 lumens deliver bright general lighting suitable for commercial and residential settings.
  • Color temperature: Switch between 3000K and 4000K to adjust the mood from warm to neutral light.
  • Power consumption: 21W ensures energy efficiency while reducing running costs.
  • Voltage: Operates on 220-240V at 50/60Hz for standard installations.
  • Beam angle: 80° wide beam gives uniform light distribution without dark spots.
  • CRI: >80 for natural color rendering, keeping spaces comfortable and vibrant.
  • Housing material: Durable aluminum body with a matte polycarbonate cover ensures longevity.
  • Ingress protection: IP20/44 provides finger and splash resistance, suitable for indoor use.
  • Dimensions: 215mm diameter and 30mm slim height make it easy to install in shallow ceilings.
  • Certifications: CE, ENEC, and EU RoHS compliant for safety and environmental responsibility.
  • Lifespan: L70 at 50,000 hours ensures long-term reliability with low maintenance needs.

Why choose this LED downlight

If you want energy efficiency, quality light output, and a clean design, this product is for you. Its dual color temperature function and slim housing give you full flexibility in different applications. Backed by a 5-year warranty, this is an investment in reliable and sustainable lighting.

Specifications

General Information

Product Family
CoreLine SlimDownlight
Product Model
DN145B LED20S/830_840 PSU WH
Feature
All-in, Multi Color Temperature
Driver Included
Yes
Warranty Period
5 years
Service Tag
Yes
Maintenance Class
Class C, maintenance-free luminaire without serviceable parts

Light Technical

Luminous Flux
2100 lm
Luminous Efficacy
100 lm/W
Correlated Color Temperature
3000 K, 4000 K
Light Source Color
830 Warm White, 840 Neutral White
Color Rendering Index (CRI)
>80
Beam Angle
80°
Optic Type
Wide beam
Unified Glare Rating (UGR)
27
Initial Color Consistency
≤3 SDCM
Initial Chromaticity
(0.44, 0.41) SDCM <3; (0.38, 0.38) SDCM <3

Electrical Ratings

Input Voltage
220 to 240 V
Input Frequency
50 or 60 Hz
Power Consumption
21 W
Power Consumption Tolerance
±10%
Power Factor
0.9
Inrush Current
28.9 A
Inrush Time
0.0016 ms
Total Harmonic Distortion (THD)
20%
IEC Protection Class
Class II
Connection
2-pole push-in connector
Number on MCB 16A Type B
16

Controls and Dimming

Dimmable
No
Driver Type
Power supply unit (on/off)
Constant Light Output
No

Performance Over Time

Driver Failure Rate at 50,000 hrs
5%
Lumen Maintenance at 50,000 hrs
L70
Luminous Flux Tolerance
±10%

Physical Attributes

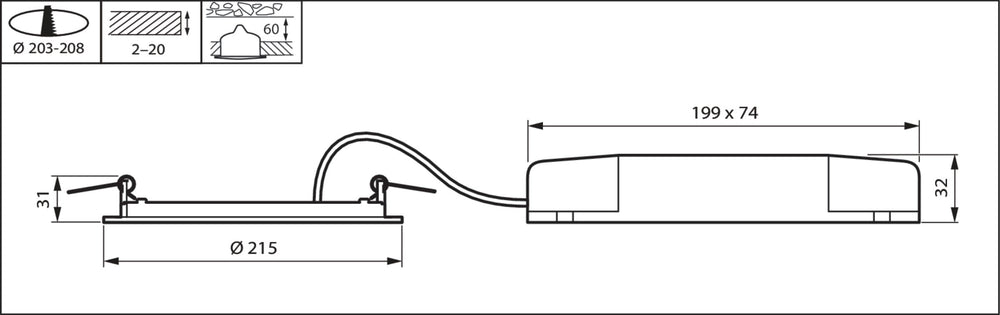

Dimensions
Overall Height
30 mm
Overall Diameter
215 mm
Housing Material
Aluminum
Reflector Material
Polycarbonate
Optic Material
Polycarbonate
Optical Cover Material
Polycarbonate
Housing Color
White
Optical Cover Finish
Matte
Net Weight
0.503 kg

Approvals and Application

Ingress Protection Code
IP20/44 (Finger-protected, wire-protected, splash-proof)
Impact Protection Code
IK02
Ambient Temperature Range
-20 to +40 °C
Performance Ambient Temperature
25 °C
Flammability Mark
For mounting on normally flammable surfaces
Glow Wire Test
Temperature 650 °C, duration 30 s
Emergency Lighting
No
Suitable for Random Switching
Not applicable
CE Mark
Yes
ENEC Mark
Yes
EU RoHS Compliant
Yes

Order Information

Full Product Name
DN145B LED20S/830_840 PSU WH
Order Code
8720169500426
EAN/UPC (Product)
8720169500426
EAN/UPC (Case)
8720169500471
Material Number (12NC)
911401816285
Full EOC
872016950042699
Quantity Per Pack
1
Packs Per Outer Box
10
